Cell-Link Cellular System

The Remote "Hub" Advantage

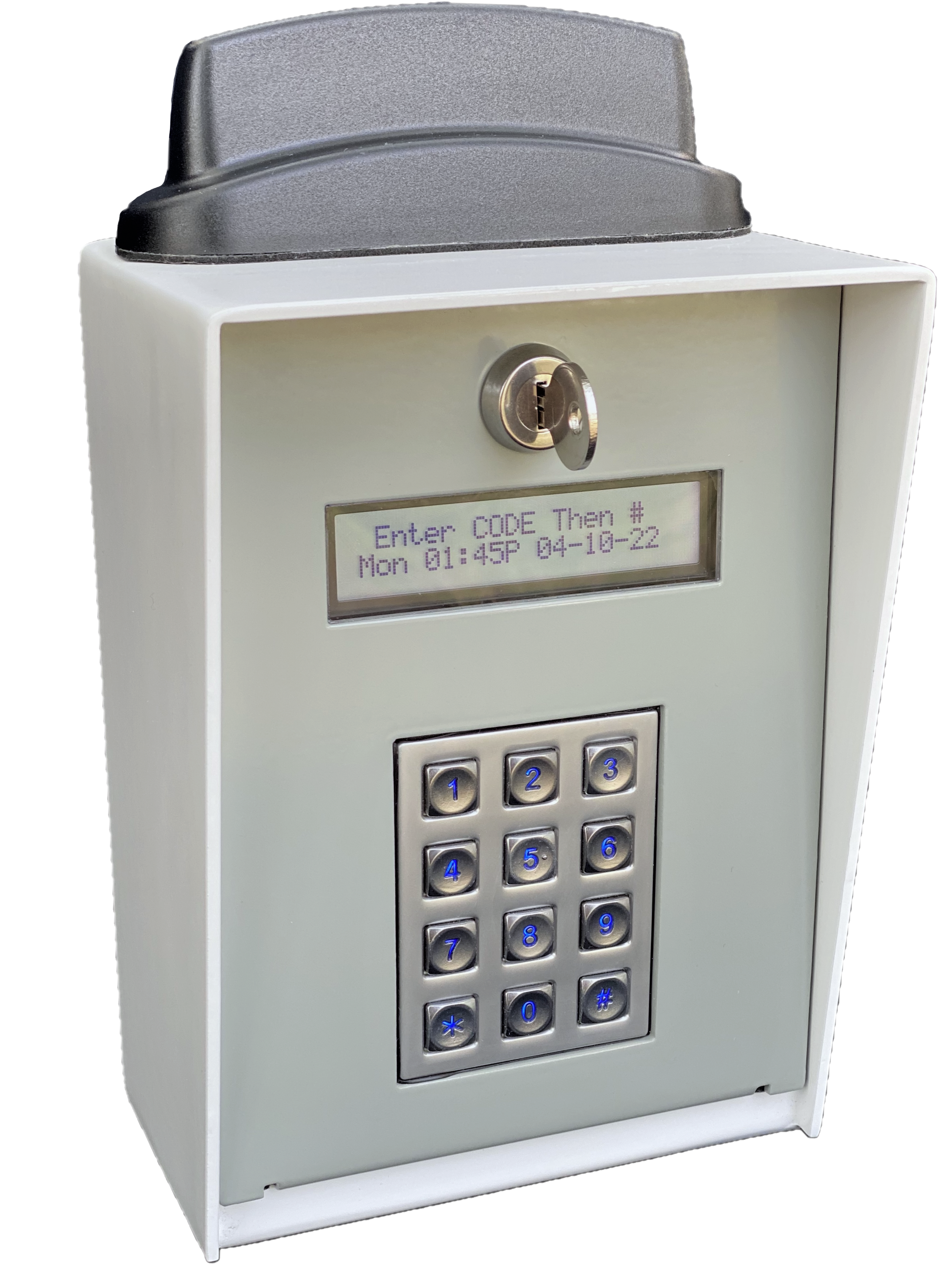

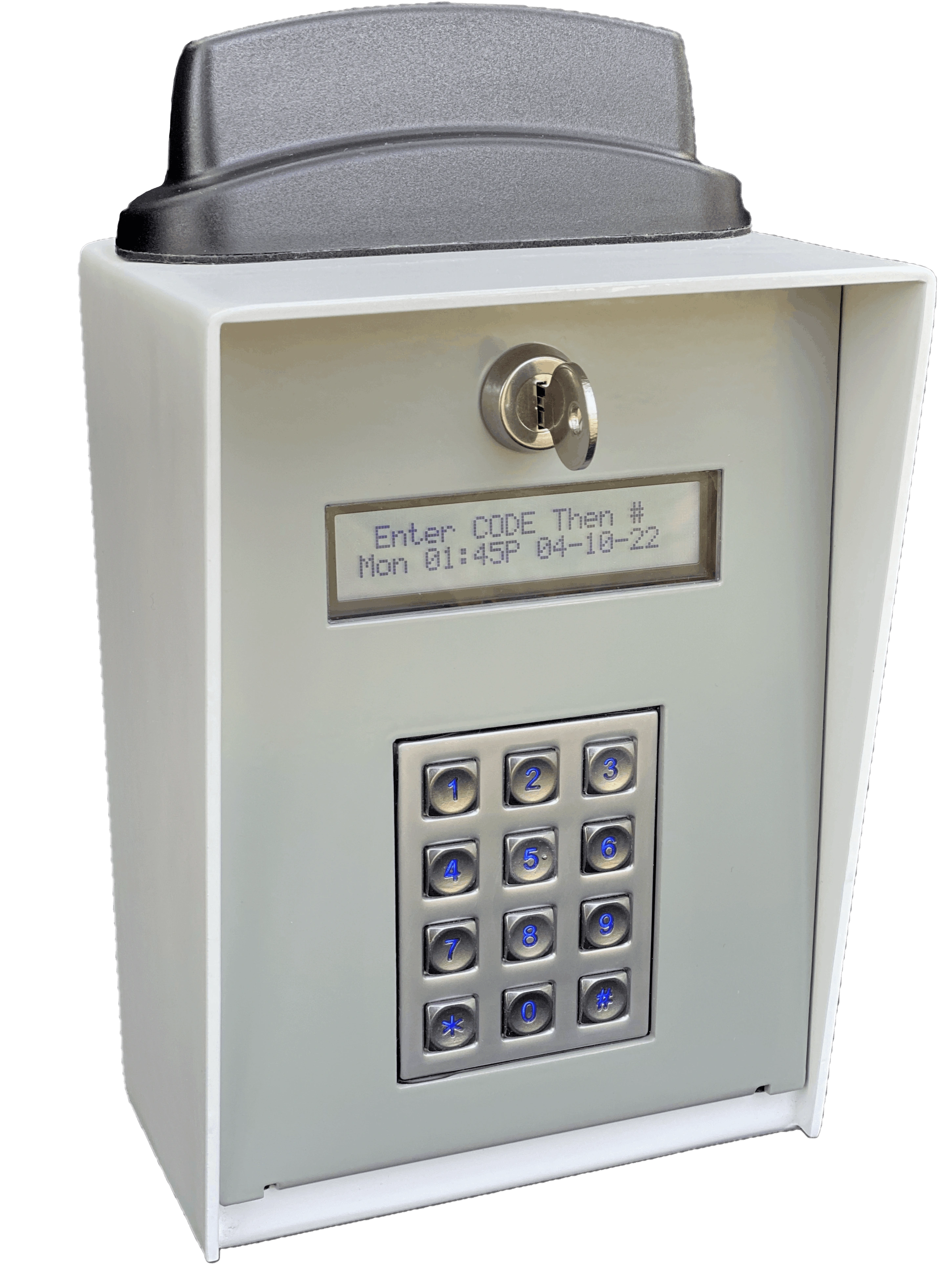

The Cell-Link controller provides real-time, remote gate control using a dedicated cellular connection. It is shipped pre-configured by RCS and includes a 24VDC power supply, making it incredibly easy to retrofit into an existing front gate.

Expand Without Extra Fees:

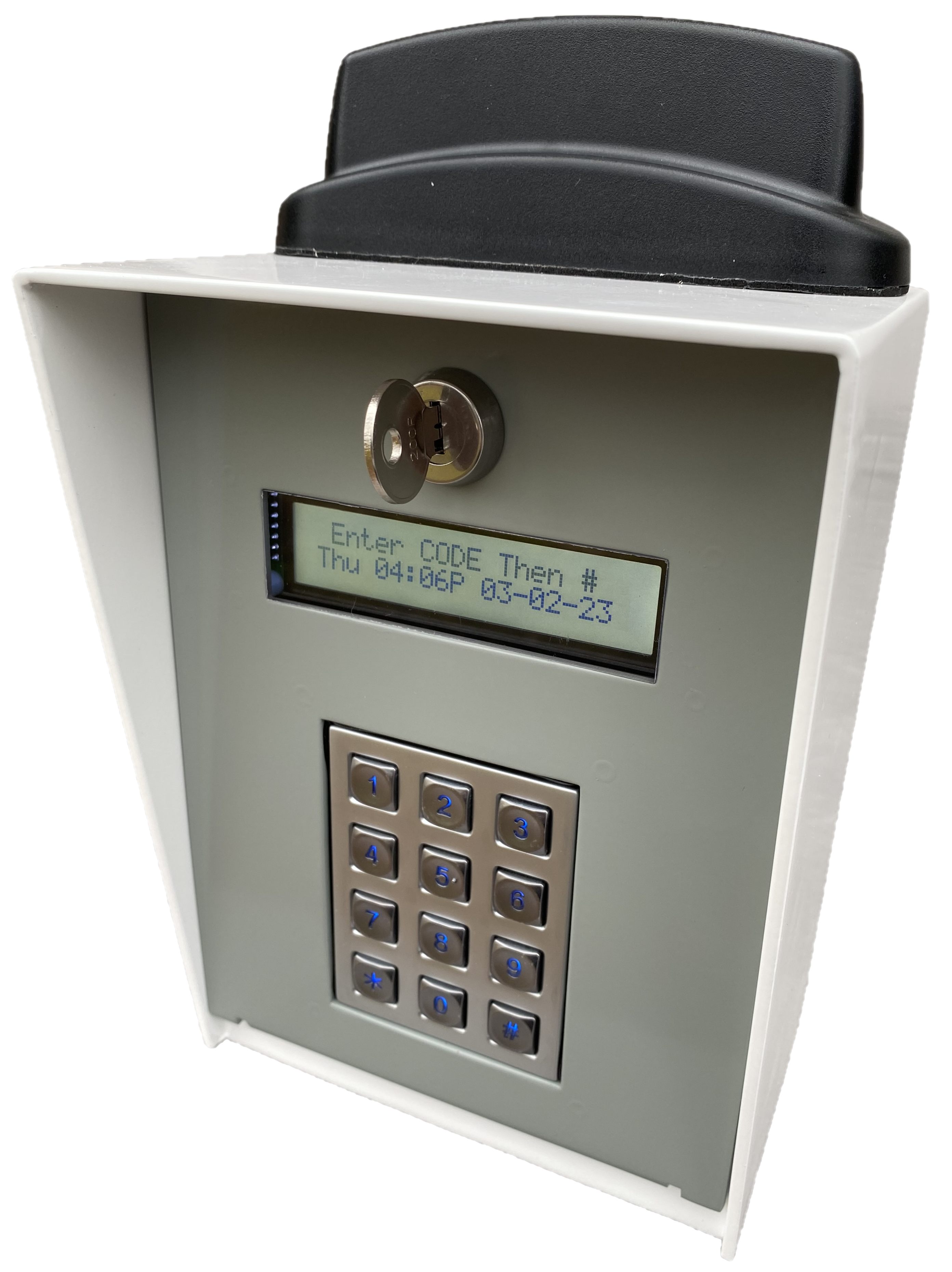

• Daisy-Chain Expansion: You can connect up to 31 additional On-Site or Air-Link keypads to your main Cell-Link unit.
• One Single Fee: All connected keypads utilize the primary Cell-Link hub, providing real-time remote updates for your entire facility for just one low monthly cellular fee.
• Fully Managed: The cellular account is completely managed by RCS for ease of use and installation.

Real-Time Cellular Sync

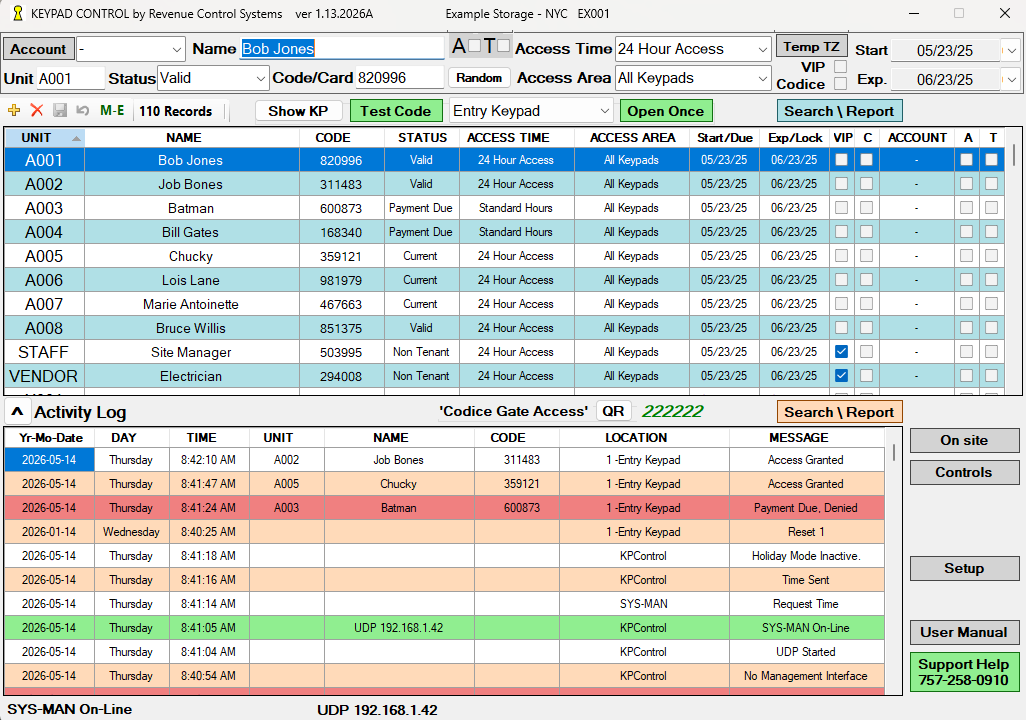

Cell-Link uploads activity logs and downloads tenant data in real-time through your included KP-Control software. It seamlessly connects to your third-party management software to ensure you never have to enter tenant data twice.

Onboard SYSMAN Protection:

• 100% Uptime: The Cell-Link features an onboard System Manager (SYSMAN) that stores all tenant information locally.
• Offline Functionality: If your office computer is turned off, the gate remains fully functional, securely storing keypad activity until the software reconnects.

Technical Specifications

• Network: Cellular / Wired RS485 Hub
• Capacity: 2,250 Users / 10-Digit Max Code
• Expansion: Supports 31 additional keypads
• Clock: On-board RTC w/ DST (15-yr battery)
• Relay Timers: 2 auto timers per day
• Power: 24 VDC Included (800 mA)
• Dimensions: 11" H x 6" W x 4" D

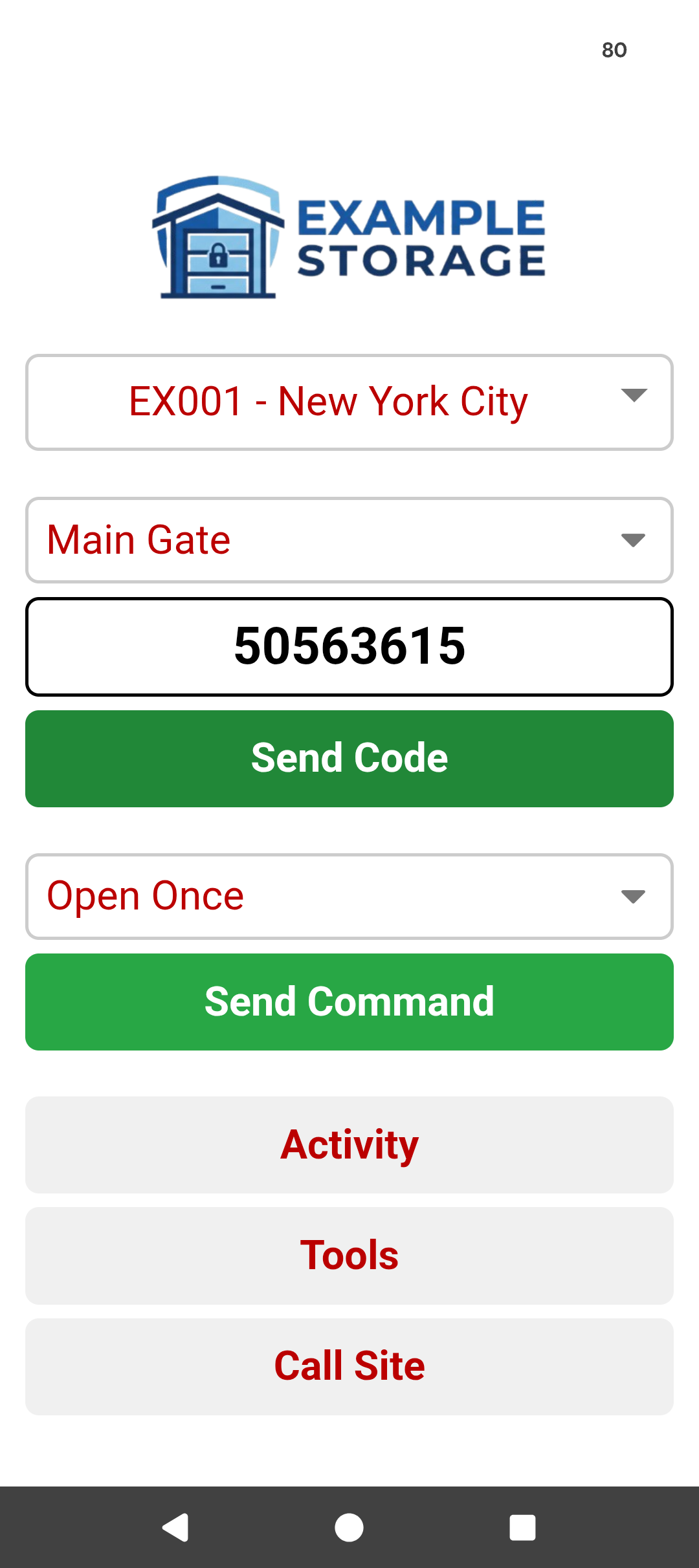

Codice! Phone App (Optional)

Cell-Link controllers are fully compatible with our optional Codice! App. Allow customers to open the remote gate directly from their smartphone without ever rolling down their window.

RCS Mounting Pedestal

An elegant, heavy-duty design that makes running wire simple. Fully compatible with all RCS keypad controllers.

• Height: 47.75"
• Reach: 10" from post to plate
• Mounting Plate: 6.5" x 4.25"
• Base Plate: 5.5" x 5.5"
