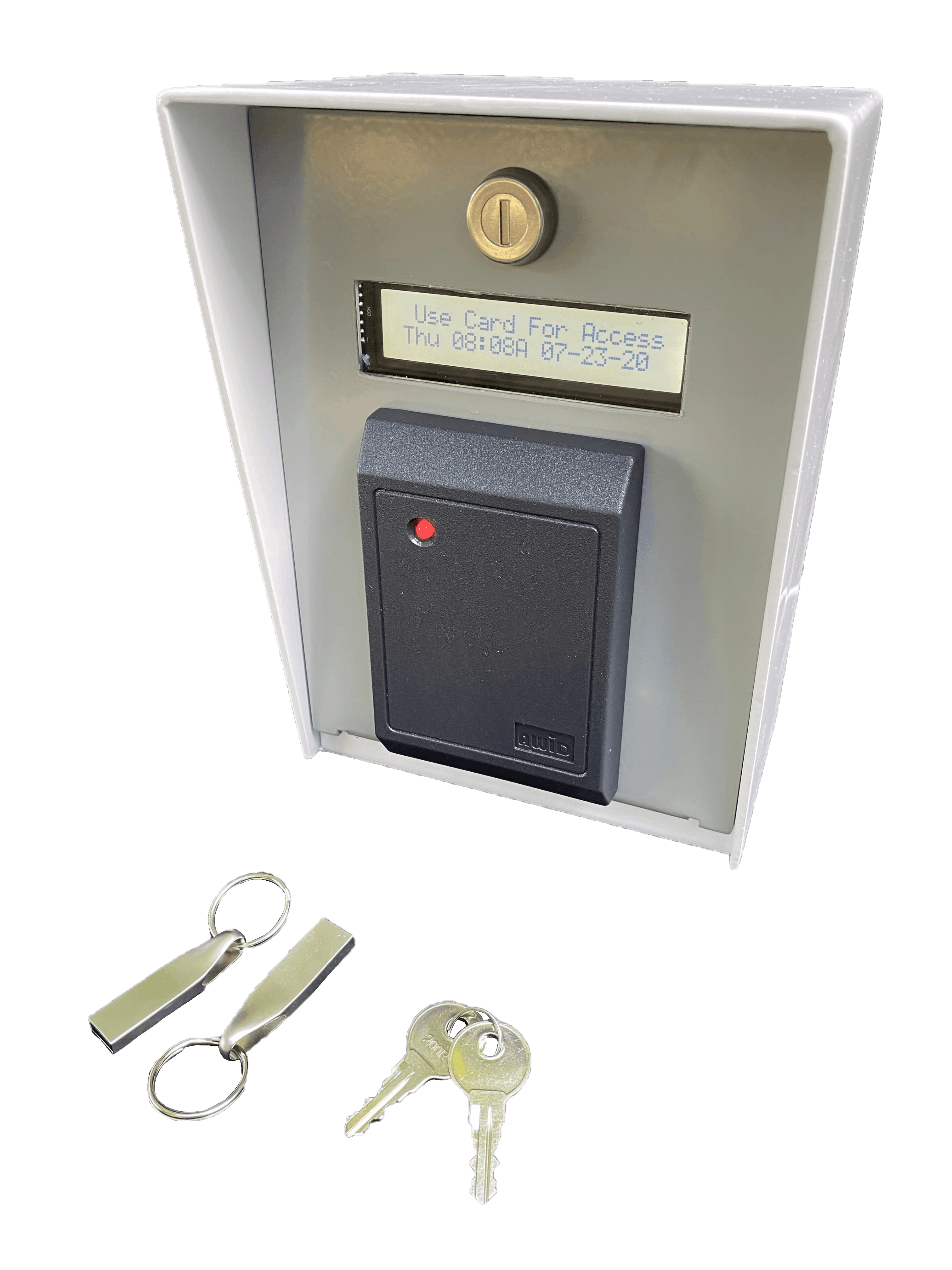

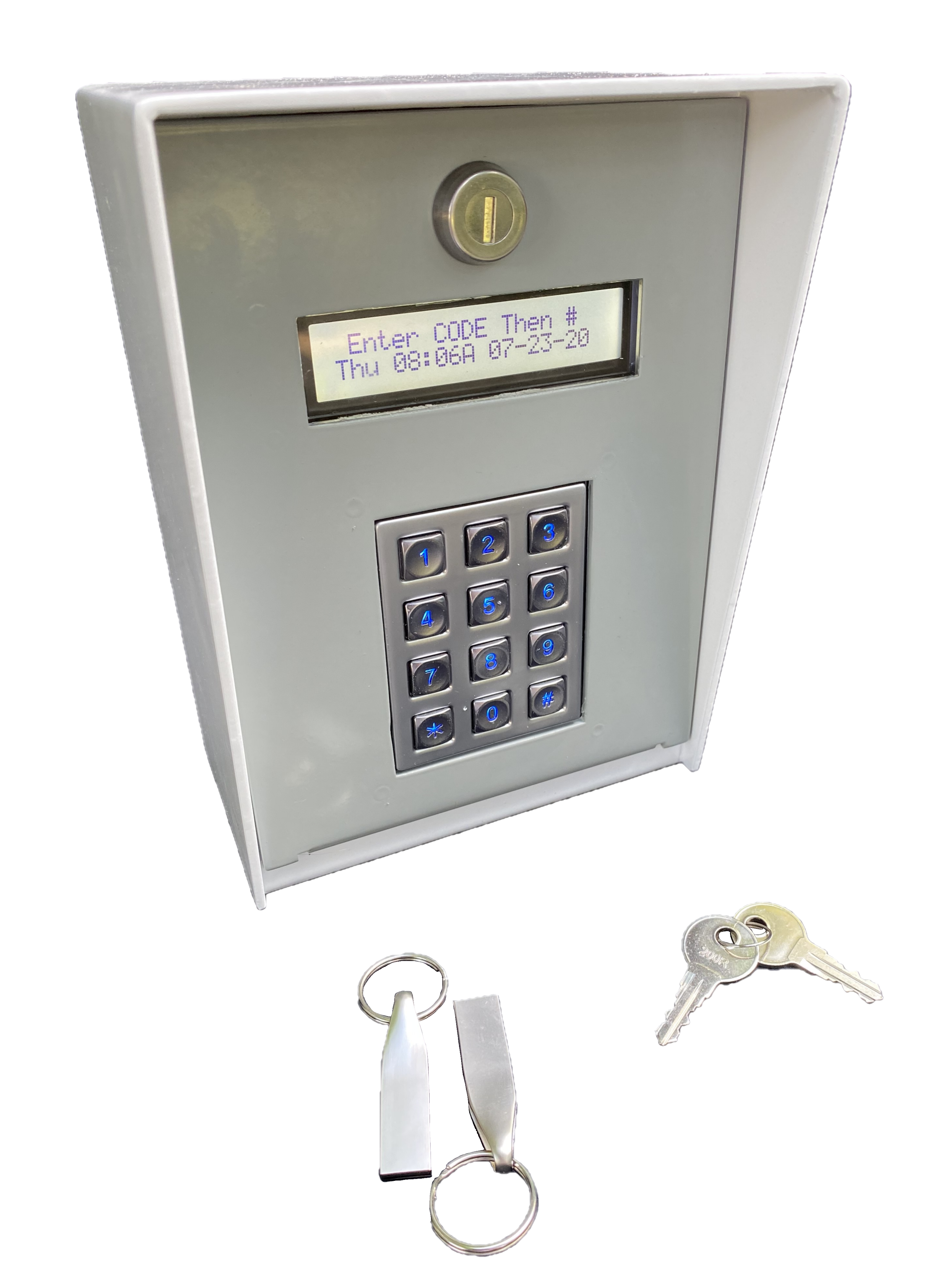

U-Flash Access Controller

The "Off-Grid" Advantage

The U-Flash system delivers the exact same functionality as a wired "on-line" access system, but saves you thousands of dollars in trenching, installation, and internet service fees. It is the perfect solution for remote buildings, parking garages, and expanding self-storage facilities.

How It Works:

• Simple USB Sync: All valid users and access schedules are loaded onto a standard USB flash drive from your office computer.
• Plug & Play: Simply plug the flash drive into the U-Flash controller to instantly update the gate and download the latest transaction activity logs.
• No Special Tools: Absolutely no proprietary programming devices are needed.
• High Capacity: Store up to 5,000 user codes (up to 10 digits long) or proximity cards directly on the unit.

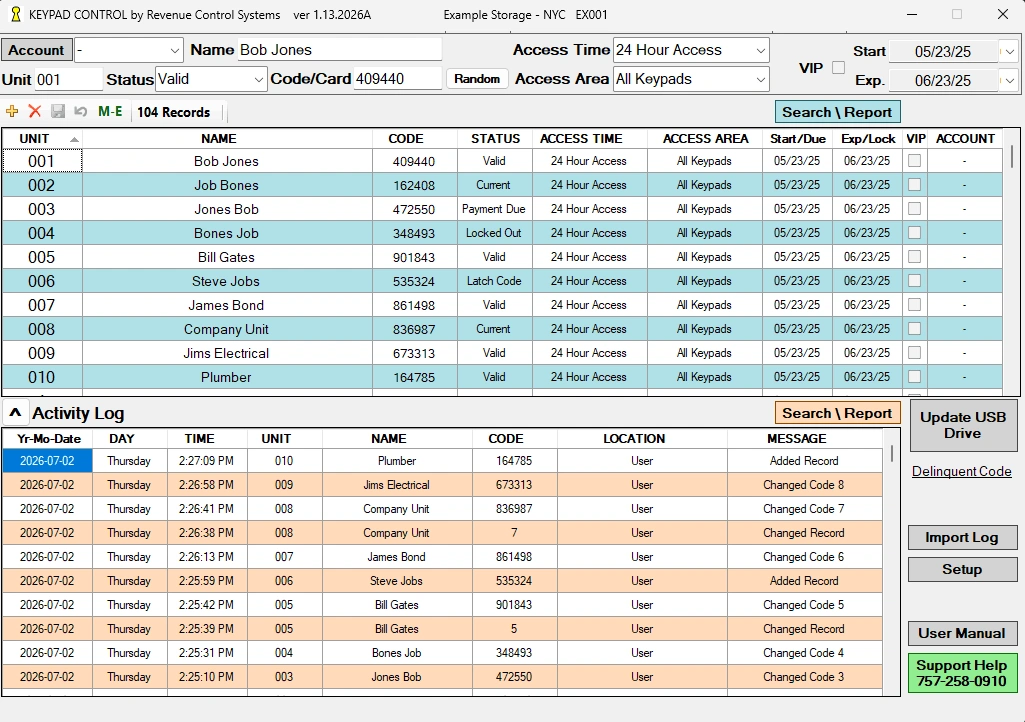

Powerful KP-Control Software

Even though U-Flash is offline, you still get our powerful KP-Control software to manage your facility from the office. It imports real-time changes from third-party management programs and automatically updates user status by date.

Advanced Features:

• Control access by time, day of the week (Time Zones), and account status.
• Delayed code activation with auto-expiration dates for visitors/contractors.
• Timed and Hard Anti-passback functions for parking applications.
• Manage up to 64 access-controlled locations (using dual units) from one screen.

Technical Specifications

• Capacity: 5,000 Users / 10-Digit Max Code
• Display: 2-Line x 20-Character OLED (Daylight Readable)
• Keypad: Industrial metal, illuminated buttons
• Inputs: 2 Wiegand inputs w/ relays
• Relay Timers: 2 auto timers per day (1-9999 sec.)
• Power: 12 to 24 VAC or VDC (300 mA)
• Dimensions: 6" W x 9" H x 5" D
• Warranty: 2-Year Manufacturer Warranty

System Features

• Single or dual configuration (Entry/Exit)
• Local door alarm output & egress input
• Arming input / door contact input
• Surge protection on power, inputs, and Wiegand
• Time and date stamped transactions
• 6-digit setup and override password
• Non-volatile memory with a 15-year clock battery

RCS Mounting Pedestal

An elegant, heavy-duty design that makes running wire simple. Fully compatible with On-Site and U-Flash controllers.

• Height: 47.75"
• Reach: 10" from post to plate
• Mounting Plate: 6.5" x 4.25"
• Base Plate: 5.5" x 5.5"
